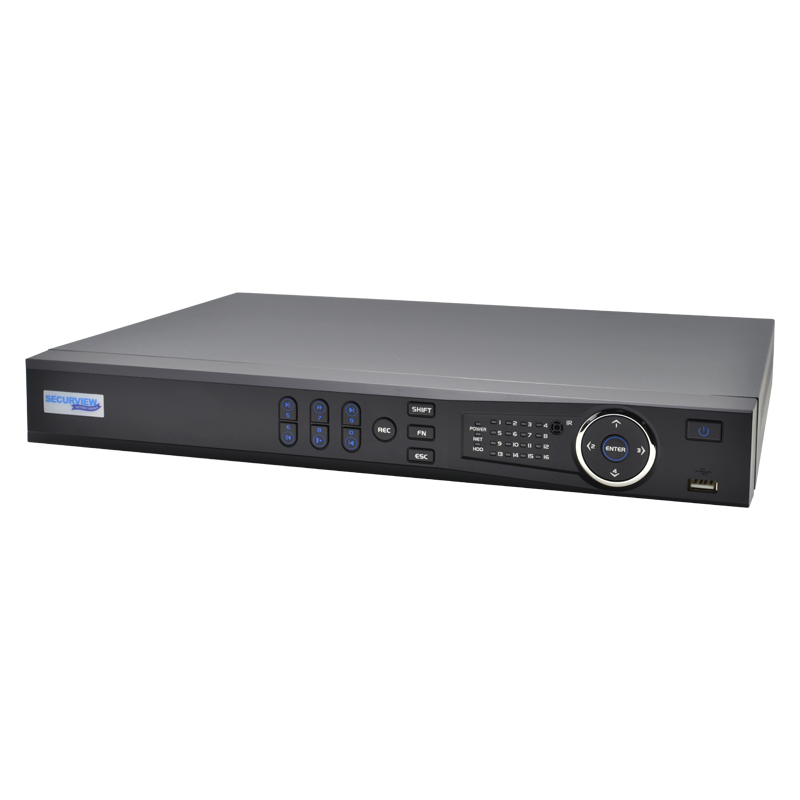

Professional Series 4 Channel 4.0MP HDCVI Digital Video Recorder
Model:CVR4PRO2
Overview
The CVR4PRO2 4 Channel HDCVI DVR delivers beyond Full HD broadcast quality surveillance over coax. Rapidly transform low-resolution surveillance into high performing HD CCTV with full support for IP & analogue video inputs, all using existing coaxial cabling.
Product features:
• Records 4 channels up to 4.0MP (2560 x 1440) at 15fps
• Support for HDCVI, Analogue and IP video inputs
• Up to 700m video transmission distance over coaxial cable
• 2 x SATA ports up to 10TB, max. 20TB HDD capacity
• Configure iOS/Android remote view in seconds via QR code
• HDMI (up to 4K, 3840 x 2160) & VGA simultaneous video output
• Backup via external USB device or local network
• Quiet smart fan auto adjusts with CPU temperature
Product features:
• Records 4 channels up to 4.0MP (2560 x 1440) at 15fps
• Support for HDCVI, Analogue and IP video inputs
• Up to 700m video transmission distance over coaxial cable
• 2 x SATA ports up to 10TB, max. 20TB HDD capacity
• Configure iOS/Android remote view in seconds via QR code
• HDMI (up to 4K, 3840 x 2160) & VGA simultaneous video output
• Backup via external USB device or local network
• Quiet smart fan auto adjusts with CPU temperature
| Specifications | |
|---|---|
| Alarm Input / Output | N/A |
| Audio In/Out | 1 channel input / 1 channel output |
| Auxiliary Inputs | 1 x RS485 port (for PTZ) |
| Backup Modes | USB Device / Internal SATA burner / Network |
| Bit Rate | 1~6144Kbps per channel |
| Camera Configurations | Coaxial: 4 channels up to 4.0MP/15fps (HDCVI), 960H/25fps (analogue) / Network: Add 2 channels up to 5.0MP, Max 24Mbps Incoming Bandwidth |

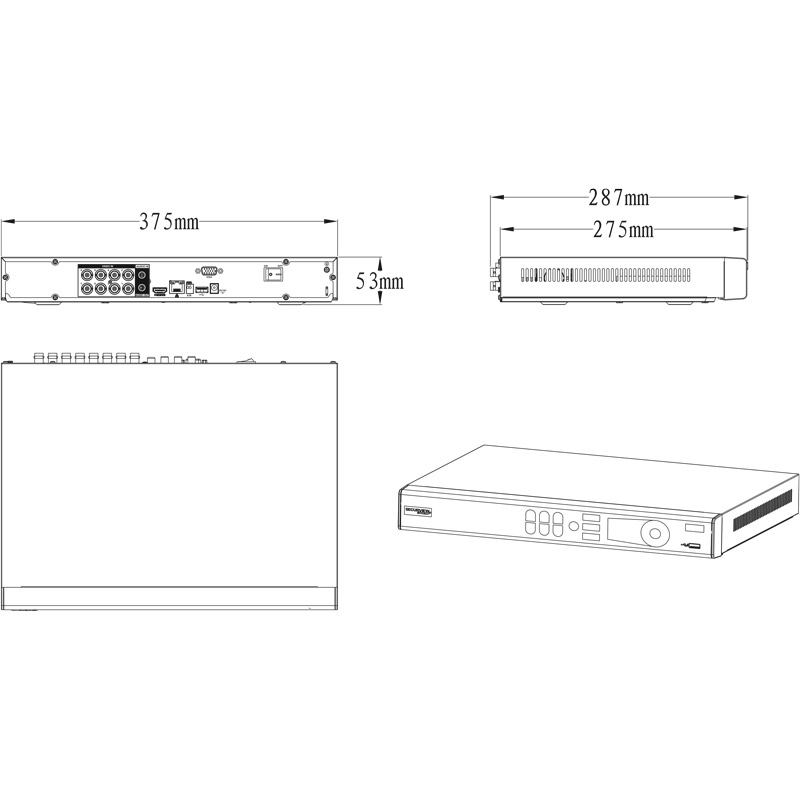

| Dimensions | 375mm x 285mm x 55mm (1U) |
| Display Resolution | 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 |
| Display Split | 1 / 4 / 6 |
| Ethernet | 1x RJ-45 port (100M) |
| Frame Rate (Main) | 4.0MP (1~15fps) / 1080p (1~25fps) |
| Frame Rate (Sub) | D1 (1~25fps) |
| Frame Rate (Third) | N/A |
| Intelligent Functions | Face Detection |
| Internal HDD | 2 x SATA ports up to 10TB, max. 20TB HDD capacity |
| Main Processor | Embedded Processor |
| Max. User Access | 128 users |
| Maximum Resolution | 4.0MP (2560 x 1440) / 1080p (1920 x 1080) |
| Network Functions | HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P |
| Operating Environment | -10 ~55°C / 10~90%RH / 86~106kpa |
| Operating System | Embedded Linux OS |
| OSD | Camera title, time, video loss, camera lock, MD & recording |
| Playback Sync | 1 / 4 |
| Power Consumption | <15W (without HDD) |
| Power Supply | 12VDC/4A |
| Rackmount Unit | 1RU |
| Rackmountable | No |
| Record Interval | 1~60 min (default: 60 min) / Pre: 1~30s / Post: 10~300s |
| Record Modes | Manual / Schedule (Regular, Continuous), Motion Detection, Alarm, Stop |
| Remote View | iOS (iPhone, iPad); Android devices, Windows Phone |
| Search Modes | Time/Date; Alarm, Motion detection; Exact search (to the second) |
| Trigger Events | Recording; PTZ; tour; alarm; push video notification; email notification; FTP upload; snapshot; internal buzzer; and screen tip overlay |
| Two-way Talk | Reuse channel 1 audio input/output |
| USB Interface | 2 ports: 1x USB2.0, 1x USB3.0 |
| Video Compression | H.264+ / H.264 |
| Video Detection | MD zones: 396 (22 x 18) / Video loss / Camera blank |
| Video Input | 4 channel BNC |
| Video Output | 1 HDMI / 1 VGA |
| Weight | 2.35kg (without HDD) |
| Warranty (Years) | 4 |
