Adapter/Junction Box for Bullet & PTZ Cameras
Model:VSBKTA142
Overview

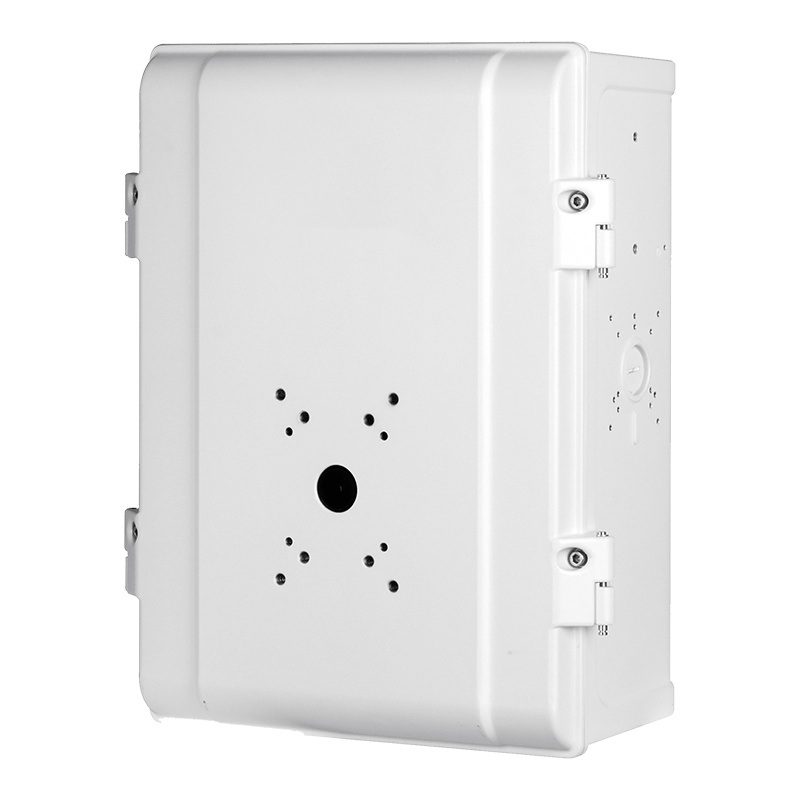

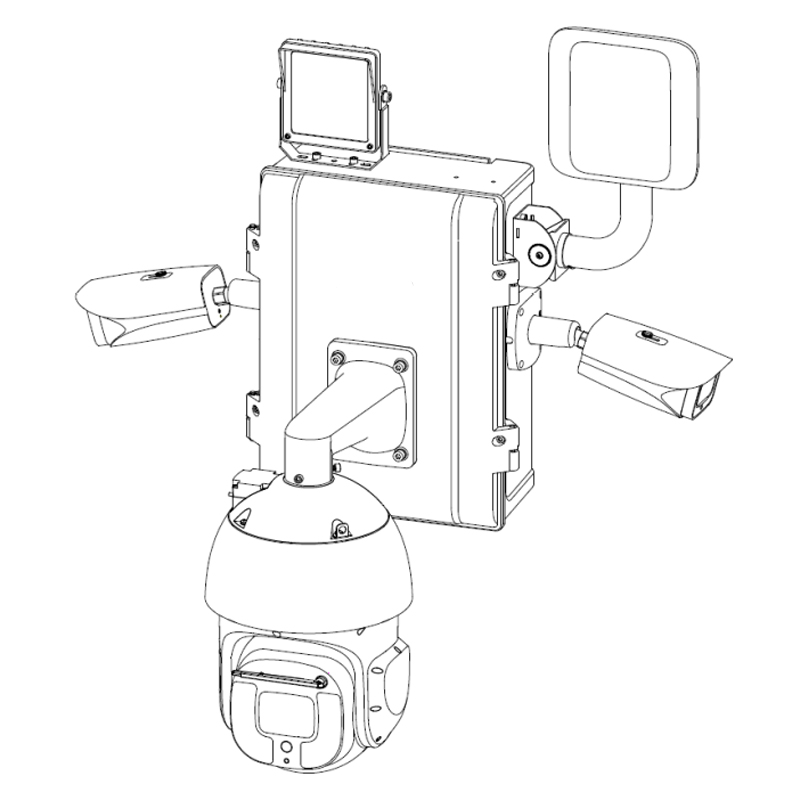

Aluminium adapter/junction box used as a spacer or as connector for corner & pole mounts. For PTZ surveillance and bullet cameras.
VIP Vision™ IP Surveillance Cameras
VIP Vision PTZ cameras only. Excludes VSIP2MPPTZ and VSIP2MPPTZC.
Securview Victory Series™ HD Over Coax Cameras
Securview Victory PTZ cameras only.
VIP Vision™ IP Surveillance Cameras
VIP Vision PTZ cameras only. Excludes VSIP2MPPTZ and VSIP2MPPTZC.
Securview Victory Series™ HD Over Coax Cameras
Securview Victory PTZ cameras only.
| Specifications | |
|---|---|
| Bracket Type | Junction Box |
| Dimensions | 450 x 365 x 191mm |
| Load Bearing Capacity | 10.00kg (front) / 6.00kg (side) / 5.00kg (inside) |
| Materials | Aluminium |
| Operating Conditions | -40° ~ 60°C / 90% RH (max) |

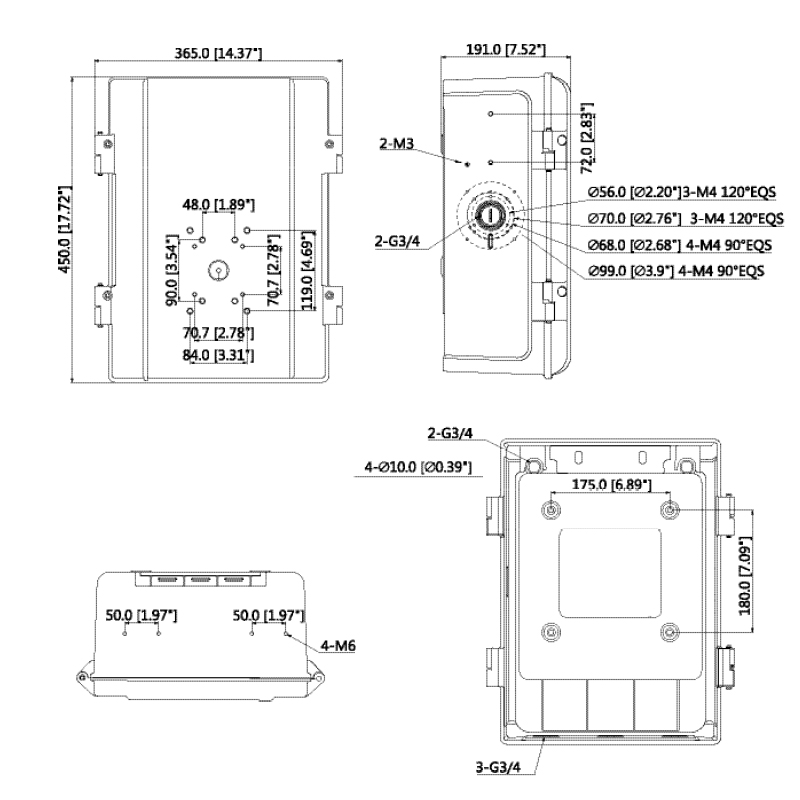

| Pipe Thread | Refer diagram |
| Weather Resistance | IP66 rated |
| Weight | 9.70kg |
| Warranty (Years) | 1 |
