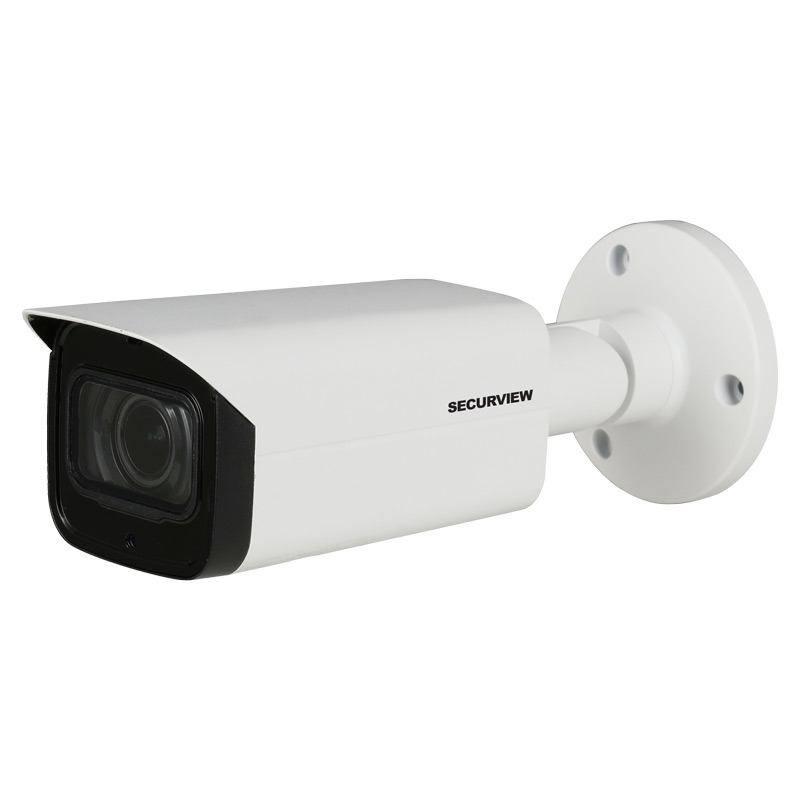

Professional Series 5.0MP WDR Motorised HDCVI Bullet
Model: VSCVI-5BIRMG

Overview

With superior 80m infrared illumination, more than double Full HD resolution and ultra low light colour, the VSCVI-5BIRMG captures clear footage at all hours, featuring a motorised varifocal lens for easy remote image adjustment.

Camera features:
• Stream up to 5.0MP (2592 x 1944) at 20fps
• Motorised varifocal 2.7~13.5mm lens with motorised iris
• Large 1/2.8'' sensor for excellent low light performance
• Smart infrared illumination, up to 80m range
• HDCVI / AHD / Composite switchable via DIP switch
• Up to 700m video transmission over coaxial cable
• True WDR (120dB) and 2D/3D noise reduction
• IP67 rated weather resistant metal housing
• Supports HDCVI, AHD, HDTVI & Composite video format modes
• Switch modes via DIP switches
Specifications
Alarm Interface N/A
Angle of View 102° (wide) ~ 29° (tele)
Audio Input Built-in Microphone / 1 Input
Camera Type Bullet
Day/Night Auto (ICR) / Colour / B&W
Detect (25px/m) 64m (wide) / 222m (tele)

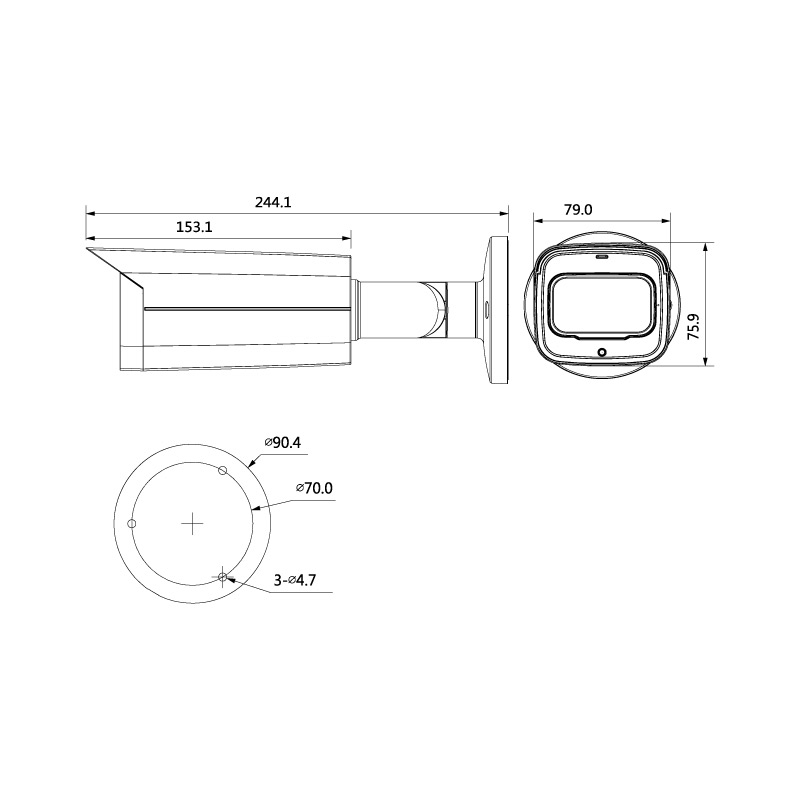

Dimensions 244 x 90 x 90mm
Effective Pixels 2592 (H) x 1944 (V)
Electronic Shutter 1/4 ~ 1/100,000s
Focus Fixed / 0.2m Min. Focus Distance
Frame Rate 20fps (5.0MP) / 25fps (4.0MP and lower)
Gain Control Auto
Housing Aluminium
Identify (250px/m) 6m (wide) / 22m (tele)
Image Sensor 1/2.8” 5.0 Megapixel CMOS
Infrared Range 80m
Ingress Protection IP67
Lens 2.7mm ~ 13.5mm F1.3 Motorised Lens, Fixed Iris
Lens Type Motorised Varifocal
Lighting Compensation BLC / HLC / WDR (120dB)
Max. Resolution 5.0 Megapixel
Minimum Illumination 0.005 Lux at F1.3 (Colour) / 0 Lux IR Active
Mode Switching DIP Switches
Modes Supported HDCVI, AHD, HDTVI & Composite
Noise Reduction 2D / 3D
Observe (63px/m) 26m (wide) / 89m (tele)
Operating Environment -30° to 60°C / RH90% (max)
OSD Menu Support
Power Consumption < 17.2W
Power Input 12VDC / 24VAC
Recognise (125px/m) 13m (wide) / 44m (tele)
Resolution 5.0MP (2592 x 1944) to CIF (352 x 288)
Series Professional Series
Signal Noise Ratio > 65dB
Synchronisation Internal
Transmission Distance Rated for up to 700m via 75-3 coaxial cable (performed in ideal test conditions)
Tri-Axis Mounting No
Vandal Resistant N/A
Video Output 1 x HDCVI / AHD / TVI / Composite video output
Weight 0.81kg
White Balance Auto / Manual
Warranty (Years) 4
