Professional Series 5.0MP Motorised HDCVI Turret
Model:VSCVI-5DIRMG
Overview
With high resolution image quality up to 5.0MP and a compact, weather resistant aluminium body, the VSCVI-5DIRMG captures excellent video footage, ultra low light performance, long range infrared, and zero image distortion with its flat lens cover.
Camera features:
• Stream up to 5.0MP (2592 x 1944) at 20fps
• Motorised varifocal 2.7~13.5mm lens with fixed iris
• 109 ~ 29° horizontal viewing angles
• Superb colour image performance in low light at 0.005lx
• Smart infrared illumination, up to 60m range
• HDCVI / AHD / Composite switchable via DIP switch
• True WDR (120dB) and 2D/3D noise reduction
• Up to 700m video transmission over coaxial cable
• IP67 rated weather resistant metal housing
• Dual power input 12VDC/24VAC
• Supports HDCVI, AHD, HDTVI & Composite video format modes
• Switch modes via DIP switches
Camera features:
• Stream up to 5.0MP (2592 x 1944) at 20fps
• Motorised varifocal 2.7~13.5mm lens with fixed iris
• 109 ~ 29° horizontal viewing angles
• Superb colour image performance in low light at 0.005lx
• Smart infrared illumination, up to 60m range
• HDCVI / AHD / Composite switchable via DIP switch
• True WDR (120dB) and 2D/3D noise reduction
• Up to 700m video transmission over coaxial cable
• IP67 rated weather resistant metal housing
• Dual power input 12VDC/24VAC
• Supports HDCVI, AHD, HDTVI & Composite video format modes
• Switch modes via DIP switches
| Specifications | |
|---|---|
| Alarm Interface | N/A |
| Angle of View | 102° (wide) ~ 29° (tele) |
| Audio Input | 1 channel in & Built-in Mic |
| Camera Type | Dome |
| Day/Night | Auto (ICR) / Color / B&W |
| Detect (25px/m) | 64m (wide) / 222m (tele) |

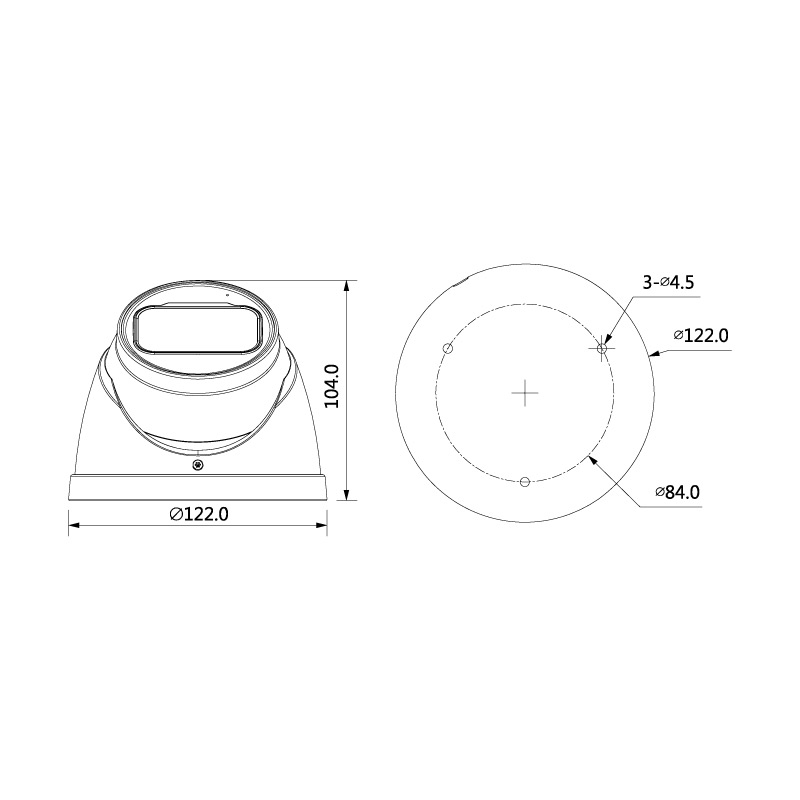

| Dimensions | Ø122mm x 107mm |
| Effective Pixels | 2592 (H) x 1944 (V) |
| Electronic Shutter | 1/4s ~ 1/100,000s |
| Focus | Fixed / 0.2m Min. Focus Distance |
| Frame Rate | 20fps (5.0MP) / 25fps (4.0MP and lower) |
| Gain Control | Auto |
| Housing | Aluminium |
| Identify (250px/m) | 6m (wide) / 22m (tele) |
| Image Sensor | 1/2.8” 5.0 Megapixel CMOS |
| Infrared Range | 60m |
| Ingress Protection | IP67 |
| Lens | 2.7mm ~ 13.5mm F1.3 Motorised Lens, fixed iris |
| Lens Type | Motorised Varifocal |
| Lighting Compensation | BLC / HLC / WDR (120dB) |
| Max. Resolution | 5.0 Megapixel |
| Minimum Illumination | 0.005 Lux at F1.3 (Colour) / 0 Lux IR Active |
| Mode Switching | DIP Switches |
| Modes Supported | HDCVI, AHD, HDTVI & Composite |
| Noise Reduction | 2D / 3D |
| Observe (63px/m) | 26m (wide) / 89m (tele) |
| Operating Environment | -30° to 60°C / RH90% (max) |
| OSD Menu | Support |
| Power Consumption | < 14.1W |
| Power Input | 12VDC / 24VAC |
| Recognise (125px/m) | 13m (wide) / 44m (tele) |
| Resolution | 5.0MP (2592 x 1944) to CIF (352 x 288) |
| Series | Professional Series |
| Signal Noise Ratio | > 65dB |
| Synchronisation | Internal |
| Transmission Distance | Rated for up to 700m via 75-3 coaxial cable (performed in ideal test conditions) |
| Tri-Axis Mounting | Yes |
| Vandal Resistant | N/A |
| Video Output | 1 x HDCVI / AHD / TVI / Composite video output |
| Weight | 0.64kg |
| White Balance | Auto / Manual |
| Warranty (Years) | 4 |
