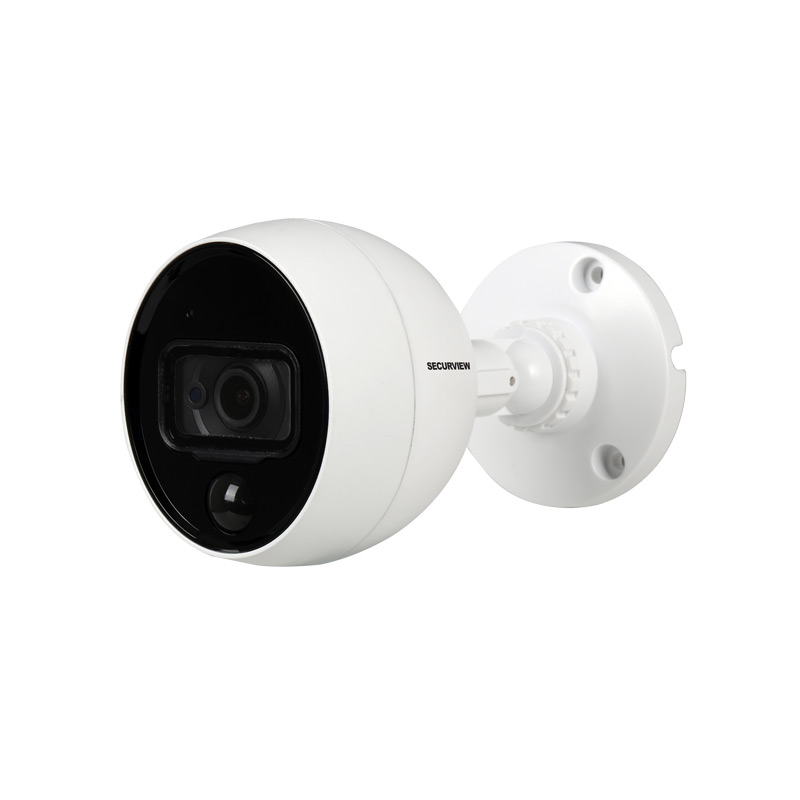

Professional Series 8.0MP WDR Fixed HDVCI Bullet (+Dual Motion Detection)
Model:VSCVI-8BIRP
Overview
Deliver accurate motion detection in any outdoors setting. The VSCVI-8BIRP combines pixel & infrared motion detection, eliminating false alarms and only activating when both motion & heat are detected at the same time.
Camera features:
• Stream up to UHD/4K/8.0MP (3840 x 2160) at 15fps
• 2.8mm fixed lens with 111° viewing angle
• Dual pixel motion & infrared detection technology
• Infrared illumination at up to 20m range
• Up to 700m video transmission over coaxial cable
• True WDR (120dB) and 2D/3D noise reduction
• IP67 rated weather resistance metal housing
• Supports HDCVI, AHD, HDTVI & Composite video format modes
• Switch modes via OSD (menu on HDCVI recorder)
Camera features:
• Stream up to UHD/4K/8.0MP (3840 x 2160) at 15fps
• 2.8mm fixed lens with 111° viewing angle
• Dual pixel motion & infrared detection technology
• Infrared illumination at up to 20m range
• Up to 700m video transmission over coaxial cable
• True WDR (120dB) and 2D/3D noise reduction
• IP67 rated weather resistance metal housing
• Supports HDCVI, AHD, HDTVI & Composite video format modes
• Switch modes via OSD (menu on HDCVI recorder)
| Specifications | |
|---|---|
| Alarm Interface | N/A |
| Angle of View | 111° |
| Audio Input | N/A |
| Camera Type | Bullet |
| Category | HDCVI Surveillance |
| Day/Night | Auto / Manual |
| Detect (25px/m) | 84m |

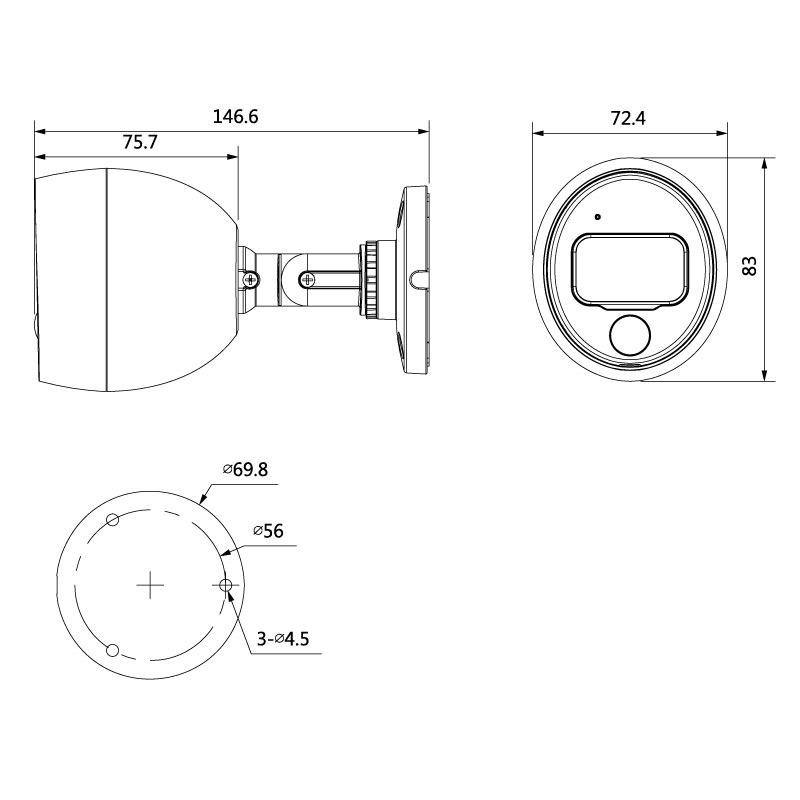

| Dimensions | 147 x 72 x 83mm |
| Effective Pixels | 3840 (H) x 2160 (V) |
| Electronic Shutter | 1/4s ~ 1/100,000s |
| Focus | Fixed / 1.8m Min Focus Distance |
| Frame Rate | 15fps (8.0MP) / 20fps (6.0MP) / 30fps (4.0MP and lower) |
| Gain Control | AGC |
| Housing | Aluminium (front cover) + Plastic (rear barrel) |
| Identify (250px/m) | 8m |
| Image Sensor | 1/2" 8.0 Megapixel CMOS |
| Infrared Range | 20m |
| Ingress Protection | IP67 |
| Lens | 2.8mm F1.6 Fixed Lens |
| Lens Type | Fixed |
| Lighting Compensation | BLC / HLC / WDR (120dB) |
| Max. Resolution | 8.0 Megapixel |
| Minimum Illumination | 0.005 Lux at F1.6 (Colour) / 0 Lux IR Active |
| Mode Switching | OSD (via HDCVI recorder) |
| Modes Supported | HDCVI & Composite |
| Noise Reduction | 2D / 3D |
| Observe (63px/m) | 34m |
| Operating Environment | -10°C ~ +50°C/RH 95% (max) |
| OSD Menu | Support |
| Power Consumption | < 5.3W |
| Power Input | 12VDC |
| Recognise (125px/m) | 17m |
| Resolution | 8.0MP (3840 x 2160) to CIF (352 x 288) |
| Series | Professional Series |
| Signal Noise Ratio | >65dB |
| Synchronisation | Internal |
| Transmission Distance | Rated for up to 700m via coaxial cable (performed in ideal test conditions) |
| Tri-Axis Mounting | N/A |
| Vandal Resistant | N/A |
| Video Output | 1 x HDCVI video output |
| Weight | 0.25kg |
| White Balance | Auto / Manual |
| Warranty (Years) | 4 |
