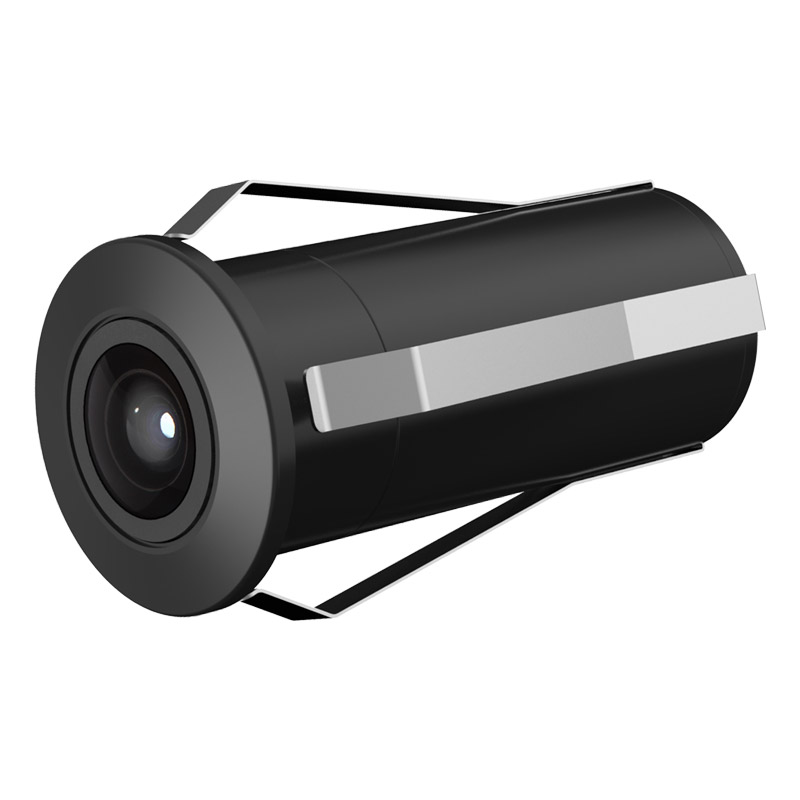

Mobile Series 1080p Fixed HDCVI Flush Mount Bumper Camera
Model:VSCVI2MPBT2.8

Overview

Every angle of your vehicle covered with the Mobile Series from Securview. The VSCVI2MPBT2.8 is ideal for flush mount bumper installation, delivering a wide 109° field of view in a durable and compact shock-resistant housing.

Camera features:
• Streams Full HD 1080p/2.0MP (1920 x 1080)
• Fixed 2.8mm lens; 109° viewing angle
• Up to 500m HD video transmission over coax
• IP67 weather resistant housing
• Auto white balance & 2D noise reduction
• Shock-resistant metal chassis & cable connectors
Specifications
Alarm Interface N/A
Analogue Support N/A
Angle of View 109°
Audio Input N/A
Camera Type Flush Mount
Day/Night Auto (ICR) / Manual
Detect (25px/m) 40m

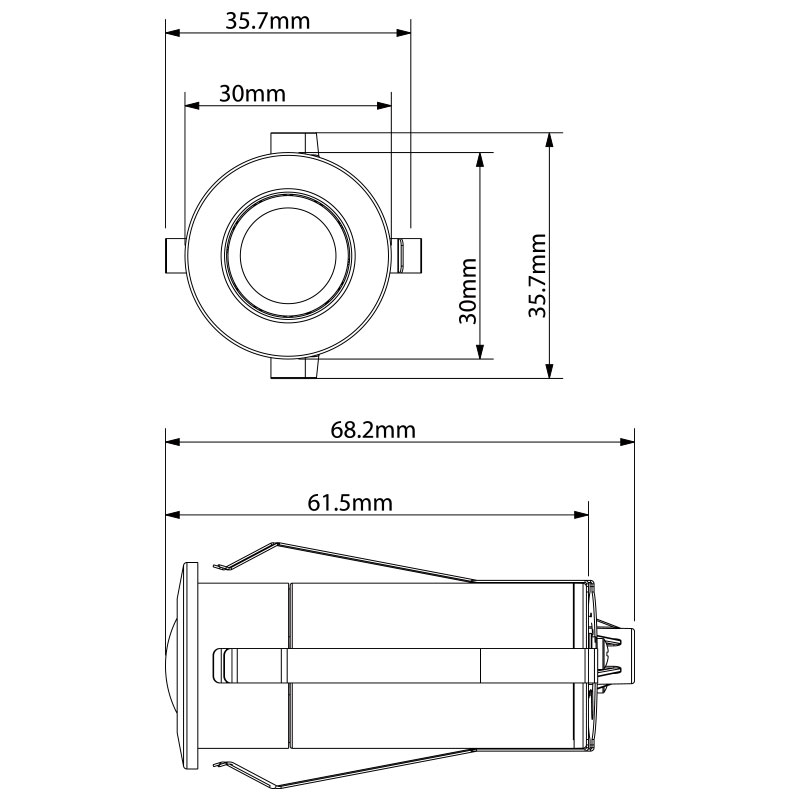

Dimensions Ø30 x 68mm
Effective Pixels 1920 (H) x 1080 (V)
Electronic Shutter 1/25 ~ 1/100,000s
Focus Fixed / 0.5m Min. Focus Distance
Frame Rate 25fps (1080p and lower)
Gain Control Auto
Housing Metal
Identify (250px/m) 4m
Image Sensor 1/2.9” 2.0 Megapixel CMOS
Infrared Range N/A
Ingress Protection IP67
Lens 2.8mm F2.0 Fixed Lens
Lens Type Fixed
Lighting Compensation BLC / HLC / DWDR
Max. Resolution 2.0 Megapixel
Minimum Illumination 0.02 Lux F2.0 (Colour) / 0.002 Lux (B/W)
Noise Reduction 2D
Observe (63px/m) 16m
Operating Environment -40° to 70°C / RH90% (max)
OSD Menu Support
Power Consumption <0.6W
Power Input 12VDC
Recognise (125px/m) 8m
Resolution 1080p (1920 x 1080) to CIF (352 x 288)
Series Mobile
Signal Noise Ratio > 65dB
Synchronisation N/A
Transmission Distance 3m / 6m / 12m / 18m heavy duty cables available
Tri-Axis Mounting No
Vandal Resistant N/A
Video Output 1x M12 BNC HDCVI output
Weight 0.07kg
White Balance Auto / Manual
Warranty (Years) 4
Downloads
Mobile Camera Series.pdf
