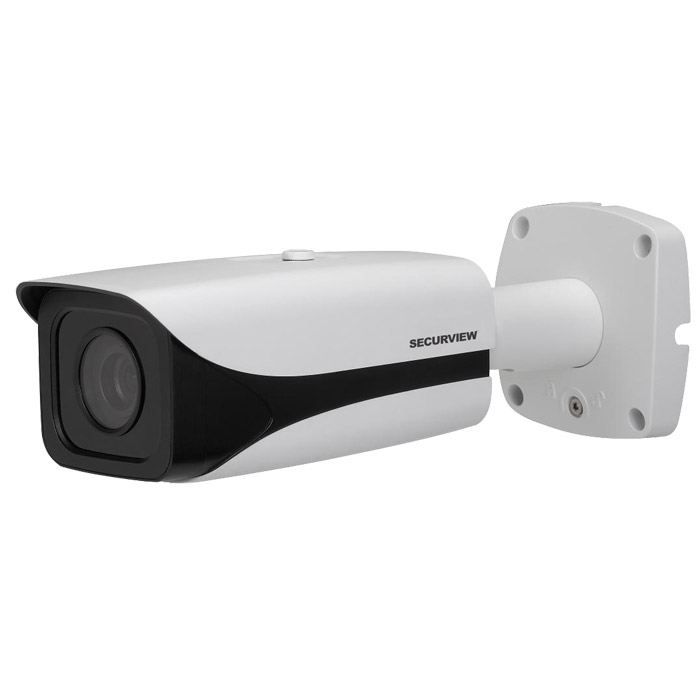

Ultimate Series 1080p WDR Motorised HDCVI Bullet
Model:VSCVI2MPFBIRM100M
Overview
Experience unparalleled performance and ease of use with the Ultimate Series from Securview, with auto-iris motorised lens, true WDR, 100m infrared, dual voltage support and up to 700m Full HD video transmission.
Camera features:
• Streams Full HD 1080p/2.0MP (1920 x 1080)
• Motorised 2.7 ~ 12mm lens, auto iris
• Colour low light performance 0.005lx/F1.4 min illumination
• Up to 700m HD video transmission over coax
• Infrared illumination up to 100m
• IP67 rated for weather resistance
• High definition & standard definition dual outputs
• Alarm and audio I/O interface
• True WDR (120dB) & 3D noise reduction
• Supports HDCVI & Composite video format modes
• Switch modes via dual BNC video outputs
Camera features:
• Streams Full HD 1080p/2.0MP (1920 x 1080)
• Motorised 2.7 ~ 12mm lens, auto iris
• Colour low light performance 0.005lx/F1.4 min illumination
• Up to 700m HD video transmission over coax
• Infrared illumination up to 100m
• IP67 rated for weather resistance
• High definition & standard definition dual outputs
• Alarm and audio I/O interface
• True WDR (120dB) & 3D noise reduction
• Supports HDCVI & Composite video format modes
• Switch modes via dual BNC video outputs
| Specifications | |
|---|---|
| Alarm Interface | 1 channel in / 1 channel out |
| Angle of View | 95° (wide) ~ 36° (tele) |
| Audio Input | 1 channel in |
| Camera Type | Bullet |
| Day/Night | Auto (ICR) / Colour / B&W |
| Detect (25px/m) | 48m (wide) / 133m (tele) |

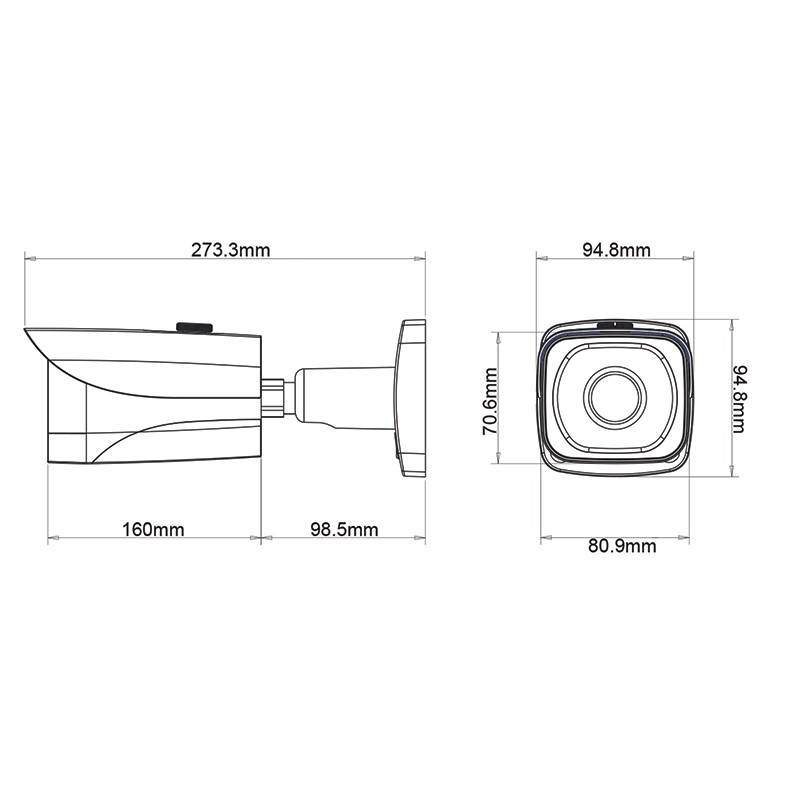

| Dimensions | 273 x 95 x 95mm |
| Effective Pixels | 1945 (H) x 1097 (V) |
| Electronic Shutter | 1/3 ~ 1/30,000s |
| Focus | Auto/Manual Focus / 0.3m Min. Focus Distance |
| Frame Rate | 25fps (1080p and lower) |
| Gain Control | Auto |
| Housing | Metal |
| Identify (250px/m) | 5m (wide) / 13m (tele) |
| Image Sensor | 1/2.8” 2.1 Megapixel CMOS |
| Infrared Range | 100m |
| Ingress Protection | IP67 |
| Lens | 2.7 ~ 12mm F1.4 Motorised Lens; Auto Iris |
| Lens Type | Motorised Varifocal |
| Lighting Compensation | BLC / WDR (120dB) |
| Max. Resolution | 2.0 Megapixel |
| Minimum Illumination | 0.005 Lux at F1.4 (Colour) / 0 Lux IR Active |
| Mode Switching | Dual BNC video outputs |
| Modes Supported | HDCVI & Composite |
| Noise Reduction | 2D / 3D |
| Observe (63px/m) | 19m (wide) / 53m (tele) |
| Operating Environment | -30° to 60°C / RH95% (max) |
| OSD Menu | Support |
| Power Consumption | < 16.6W |
| Power Input | 12VDC / 24VAC |
| Recognise (125px/m) | 10m (wide) / 27m (tele) |
| Resolution | 1080p (1920 x 1080) to CIF (352 x 288) |
| Series | Ultimate Series |
| Signal Noise Ratio | > 50dB |
| Synchronisation | Internal |
| Transmission Distance | Rated for up to 700m via 75-3 coaxial cable (performed in ideal test conditions) |
| Tri-Axis Mounting | No |
| Vandal Resistant | N/A |
| Video Output | 2 x BNC video output |
| Weight | 1.20kg |
| White Balance | Auto |
| Warranty (Years) | 4 |
