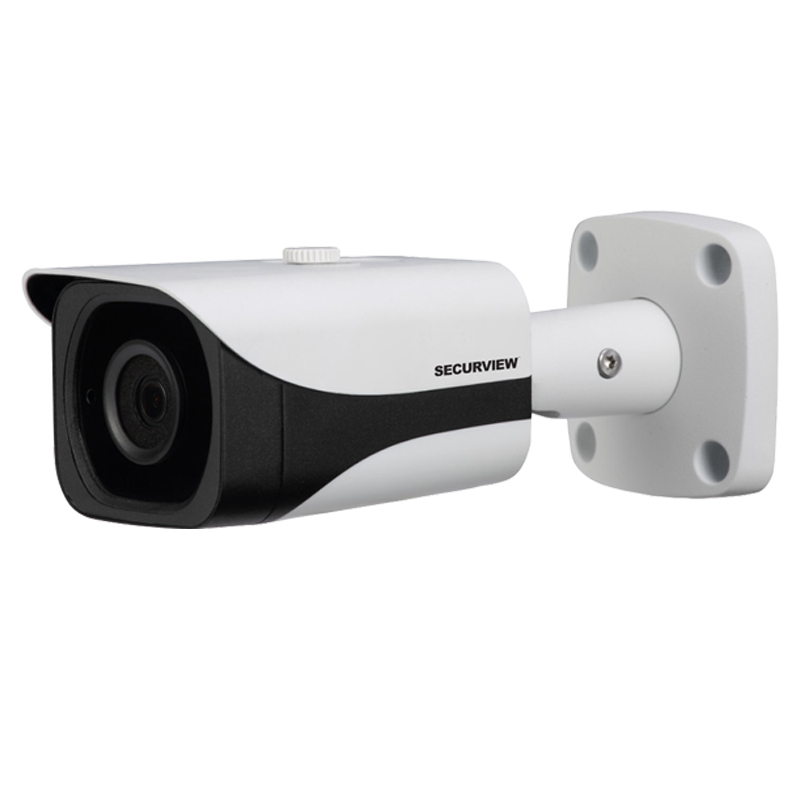

Professional Series 1080p Fixed HDCVI Mini Bullet
Model:VSCVI2MPFBIRV4
Overview
High performance fixed-lens surveillance in a compact body. The VSCVI2MPFBIRV4 offers professional features to take your surveillance to the next level, including true WDR, dual video outputs and smart infrared.
Camera features:
• Stream up to 2.0MP (1920 x 1080) at 25fps
• Fixed 3.6mm lens with wide viewing angles
• Up to 700m video transmission over coaxial cable
• Smart infrared illumination, up to 40m range
• Dual BNC outputs for HD and composite video
• True WDR (120dB) and 2D/3D noise reduction
• IP67 rated weather resistant metal housing
• Compact bullet, ideal for under eaves, walls, etc.
• Supports HDCVI & Composite video format modes.
• Switch modes via dual BNC video outputs.
Camera features:
• Stream up to 2.0MP (1920 x 1080) at 25fps
• Fixed 3.6mm lens with wide viewing angles
• Up to 700m video transmission over coaxial cable
• Smart infrared illumination, up to 40m range
• Dual BNC outputs for HD and composite video
• True WDR (120dB) and 2D/3D noise reduction
• IP67 rated weather resistant metal housing
• Compact bullet, ideal for under eaves, walls, etc.
• Supports HDCVI & Composite video format modes.
• Switch modes via dual BNC video outputs.
| Specifications | |
|---|---|
| Alarm Interface | N/A |
| Angle of View | 90° |
| Audio Input | N/A |
| Camera Type | Bullet |
| Category | HDCVI Surveillance |
| Day/Night | Auto (ICR) / Colour / B&W |
| Detect (25px/m) | 53m |

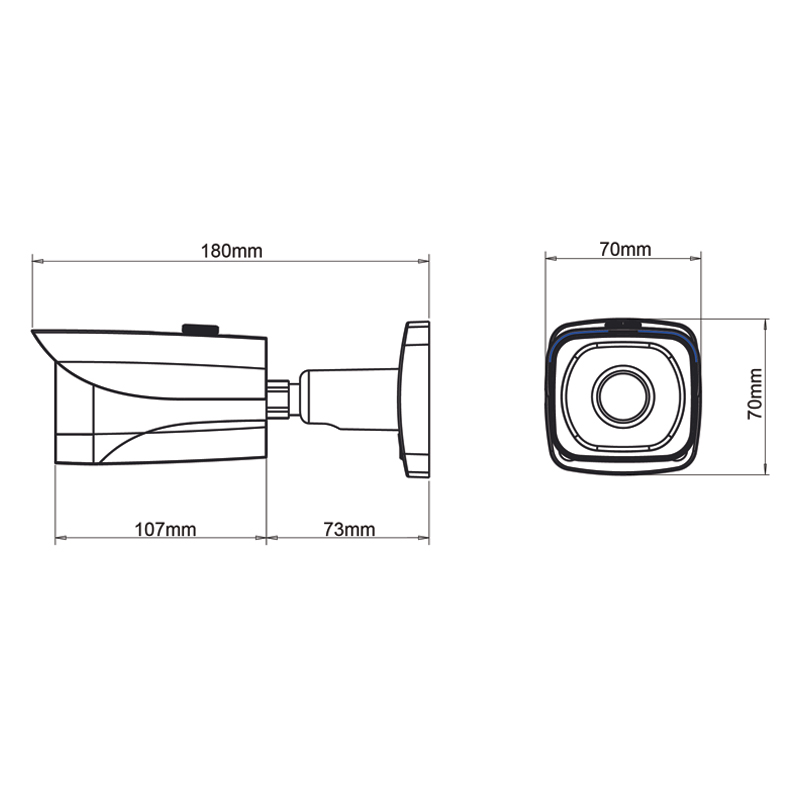

| Dimensions | 180 x 70 x 70mm |
| Effective Pixels | 1928 (H) x 1088 (V) |
| Electronic Shutter | 1/3 ~ 1/300,000s |
| Focus | Fixed / 0.8m Min. Focus Distance |
| Frame Rate | 25fps (1080p and lower) |
| Gain Control | Auto |
| Housing | Metal |
| Identify (250px/m) | 5m |
| Image Sensor | 1/2.7” 2.1 Megapixel CMOS |
| Infrared Range | 40m |
| Ingress Protection | IP67 |
| Lens | 3.6mm F2.0 Fixed Lens |
| Lens Type | Fixed |
| Lighting Compensation | BLC / HLC / WDR (120dB) |
| Max. Resolution | 2.0 Megapixel |
| Minimum Illumination | 0.03 Lux at F2.0 (Colour) / 0 Lux IR Active |
| Mode Switching | Dual BNC video outputs |
| Modes Supported | HDCVI & Composite |
| Noise Reduction | 2D / 3D |
| Observe (63px/m) | 21m |
| Operating Environment | -30° to 60°C / RH95% (max) |
| OSD Menu | Support |
| Power Consumption | < 5.5W |
| Power Input | 12VDC |
| Recognise (125px/m) | 11m |
| Resolution | 1080p (1920 x 1080) to CIF (352 x 288) |
| Series | Professional Series |
| Signal Noise Ratio | > 50dB |
| Synchronisation | Internal |
| Transmission Distance | Rated for up to 700m via 75-3 coaxial cable (performed in ideal test conditions) |
| Tri-Axis Mounting | No |
| Vandal Resistant | N/A |
| Video Output | 2 x BNC video output |
| Weight | 0.40kg |
| White Balance | Auto / Manual |
| Warranty (Years) | 4 |
