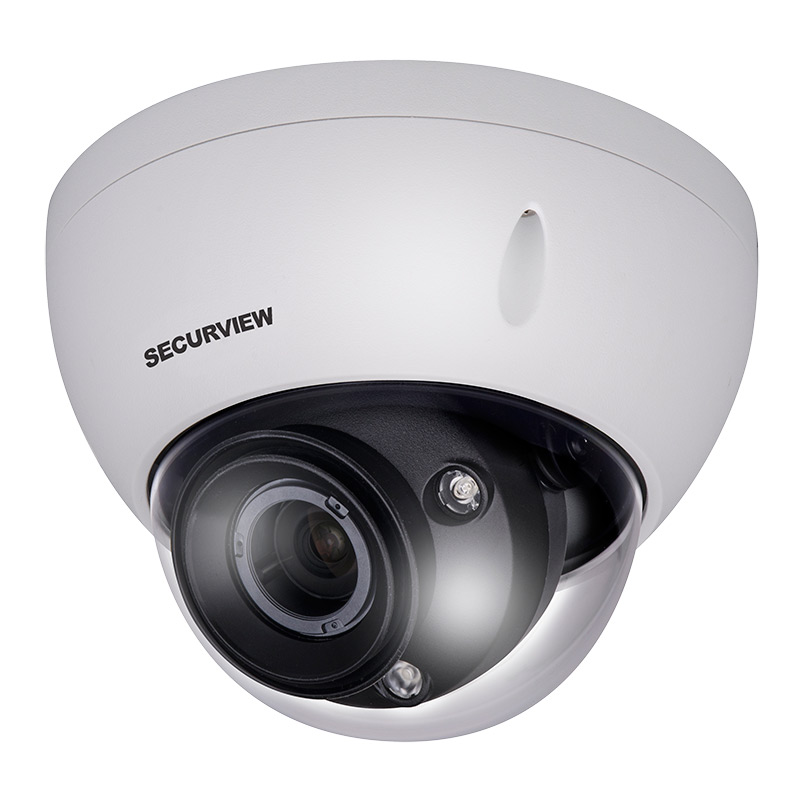

Ultimate Series 1080p WDR Motorised HDCVI Dome


The VSCVI2MPVDIRM50M features dual voltage, auto iris motorised lens, alarm & audio input, and is tri-axis adjustable. Experience unparalleled nighttime performance with ultra low light colour recording.

Camera features:
• Stream up to 1080p/2.0MP (1920 x 1080)
• Motorised varifocal lens with auto-iris (DC)
• Smart infrared illumination, up to 100m range
• Up to 700m video transmission over coaxial cable (performed under ideal test conditions)
• Colour image in low light at 0.005lx
• Dual BNC outputs for HD and composite video
• Dual voltage compatible: 12VDC and 24VAC
• True WDR (120dB) and 2D/3D noise reduction
• IP67/IK10, metal weather rated camera housing
• Supports HDCVI & Composite video format modes
• Switch modes via dual BNC video outputs
Alarm Interface 1 channel in / 1 channel out
Angle of View 95° (wide) ~ 36° (tele)
Audio Input 1 channel in
Camera Type Dome
Day/Night Auto (ICR) / Colour / B&W
Detect (25px/m) 48m (wide) / 133m (tele)

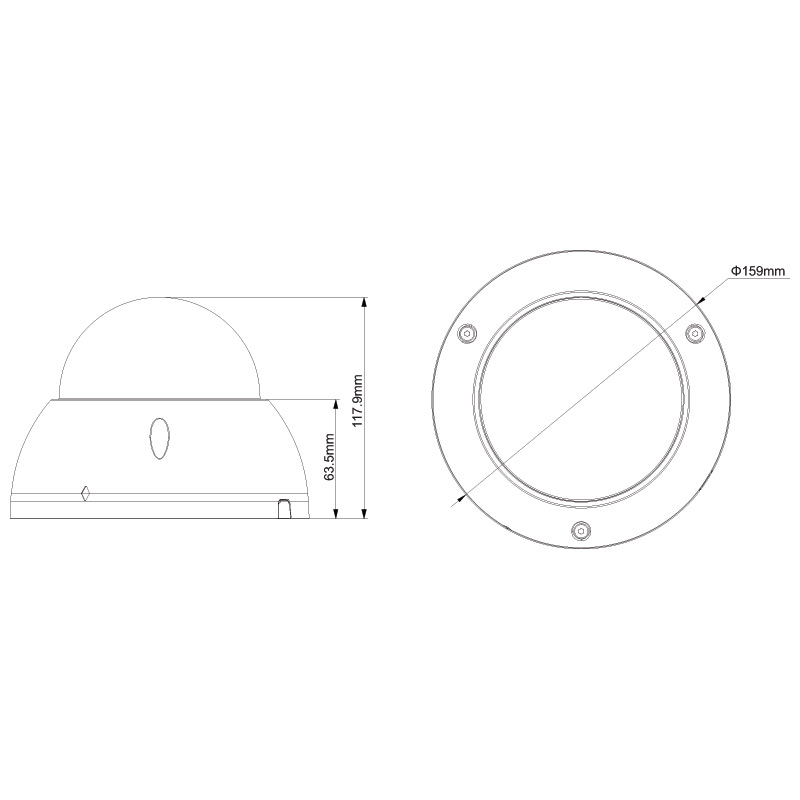

Dimensions Ø159 x 118mm
Effective Pixels 1945 (H) x 1097 (V)
Electronic Shutter 1/3 ~ 1/30,000s
Focus Auto/Manual / 0.3m Min. Focus Distance
Frame Rate 25fps (1080p and lower)
Gain Control Auto
Housing Metal
Identify (250px/m) 5m (wide) / 13m (tele)
Image Sensor 1/2.8” 2.1 Megapixel CMOS
Infrared Range 50m
Ingress Protection IP67
Lens 2.7 ~ 12mm Motorised Lens; Auto Iris
Lens Type Motorised Varifocal
Lighting Compensation BLC / HLC / WDR (120dB)
Max. Resolution 2.0 Megapixel
Minimum Illumination 0.005 Lux at F1.4 (Colour) / 0 Lux IR Active
Mode Switching Dual BNC video outputs
Modes Supported HDCVI & Composite
Noise Reduction 2D / 3D
Observe (63px/m) 19m (wide) / 53m (tele)
Operating Environment -30° to 60°C / RH95% (max)
OSD Menu Support
Power Consumption < 12.5W
Power Input 12VDC / 24VAC
Recognise (125px/m) 10m (wide) / 27m (tele)
Resolution 1080p (1920 x 1080) to CIF (352 x 288)
Series Ultimate Series
Signal Noise Ratio > 50dB
Synchronisation Internal
Transmission Distance Over 500m via 75-3 coaxial cable
Tri-Axis Mounting Yes
Vandal Resistant IK10
Video Output 2 x BNC video output
Weight 0.90kg
White Balance Auto
Warranty (Years) 4
