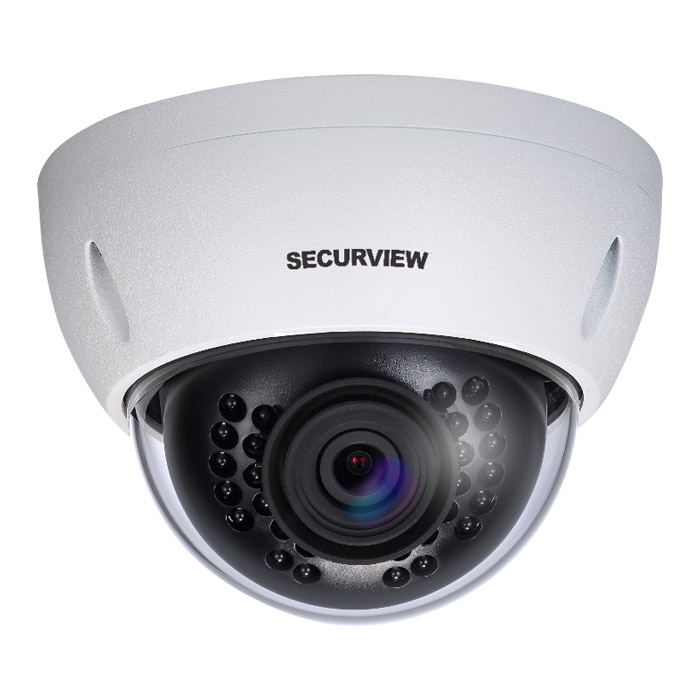

Professional Series 1080p Ultra Low Light Fixed HDCVI Mini Dome
Model:VSCVI2MPVDIRV3
Overview
High performance fixed-lens surveillance in a vandal resistant body. The VSCVI2MPVDIRV3 delivers a compact, durable HDCVI upgrade to existing analogue vandal resistant domes with true WDR & superb low light colour performance.
Camera features:
• Stream up to 1080p/2.0MP (1920 x 1080) at 25fps
• 3.6mm lens with colour image in low light at 0.005lx
• Up to 700m video transmission over coaxial cable
• Smart infrared illumination, up to 30m range
• Switchable BNC output for HD/composite video
• True WDR (120dB) and 2D/3D noise reduction
• IP67/IK10 for weather and vandal resistance
• Compact Ø110mm base & variety of accessories
• Supports HDCVI, AHD, HDTVI & Composite video format modes
• Switch modes via OSD (menu on HDCVI recorder) or with the VSSELECT101 (UTC connector)
Camera features:
• Stream up to 1080p/2.0MP (1920 x 1080) at 25fps
• 3.6mm lens with colour image in low light at 0.005lx
• Up to 700m video transmission over coaxial cable
• Smart infrared illumination, up to 30m range
• Switchable BNC output for HD/composite video
• True WDR (120dB) and 2D/3D noise reduction
• IP67/IK10 for weather and vandal resistance
• Compact Ø110mm base & variety of accessories
• Supports HDCVI, AHD, HDTVI & Composite video format modes
• Switch modes via OSD (menu on HDCVI recorder) or with the VSSELECT101 (UTC connector)
| Specifications | |
|---|---|
| Alarm Interface | N/A |
| Angle of View | 87° |
| Audio Input | N/A |
| Camera Type | Dome |
| Day/Night | Auto (ICR) / Colour / B&W |
| Detect (25px/m) | 55m |

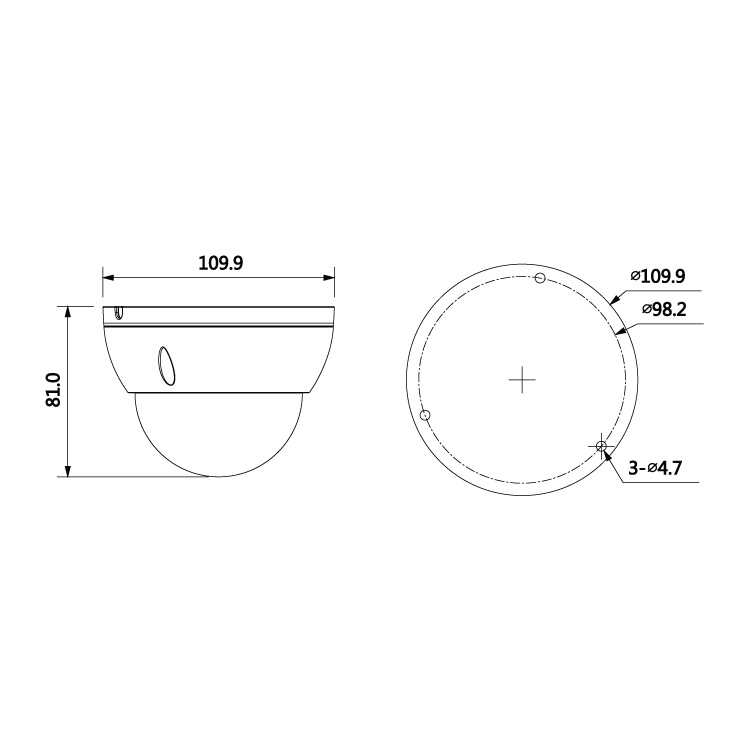

| Dimensions | Ø110 x 81mm |
| Effective Pixels | 1937 (H) x 1097 (V) |
| Electronic Shutter | 1/4 ~ 1/100,000s |
| Focus | Fixed / 0.8m Min. Focus Distance |
| Frame Rate | 25fps (1080p and lower) |
| Gain Control | Auto |
| Housing | Aluminium |
| Identify (250px/m) | 6m |
| Image Sensor | 1/2.8" 2.1 Megapixel CMOS |
| Infrared Range | 30m |
| Ingress Protection | IP67 |
| Lens | 3.6mm F1.6 Fixed Lens |
| Lens Type | Fixed |
| Lighting Compensation | BLC / HLC / WDR (120dB) |
| Max. Resolution | 2.0 Megapixel |
| Minimum Illumination | 0.005 Lux at F1.6 (Colour) / 0 Lux IR Active |
| Mode Switching | OSD (via HDCVI recorder) / VSSELECT101 (UTC connector) |
| Modes Supported | HDCVI, AHD, HDTVI & Composite |
| Noise Reduction | 2D / 3D |
| Observe (63px/m) | 22m |
| Operating Environment | -40° to 60°C / RH90% (max) |
| OSD Menu | Support |
| Power Consumption | < 3.5W |
| Power Input | 12VDC |
| Recognise (125px/m) | 11m |
| Resolution | 1080p (1920 x 1080) to CIF (352 x 288) |
| Series | Professional Series |
| Signal Noise Ratio | > 65dB |
| Synchronisation | Internal |
| Transmission Distance | Rated for up to 700m via 75-3 coaxial cable (performed in ideal test conditions) |
| Tri-Axis Mounting | Yes |
| Vandal Resistant | IK10 |
| Video Output | 1 x BNC CVI HD output / Composite SD output |
| Weight | 0.31kg |
| White Balance | Auto / Manual |
| Warranty (Years) | 4 |
