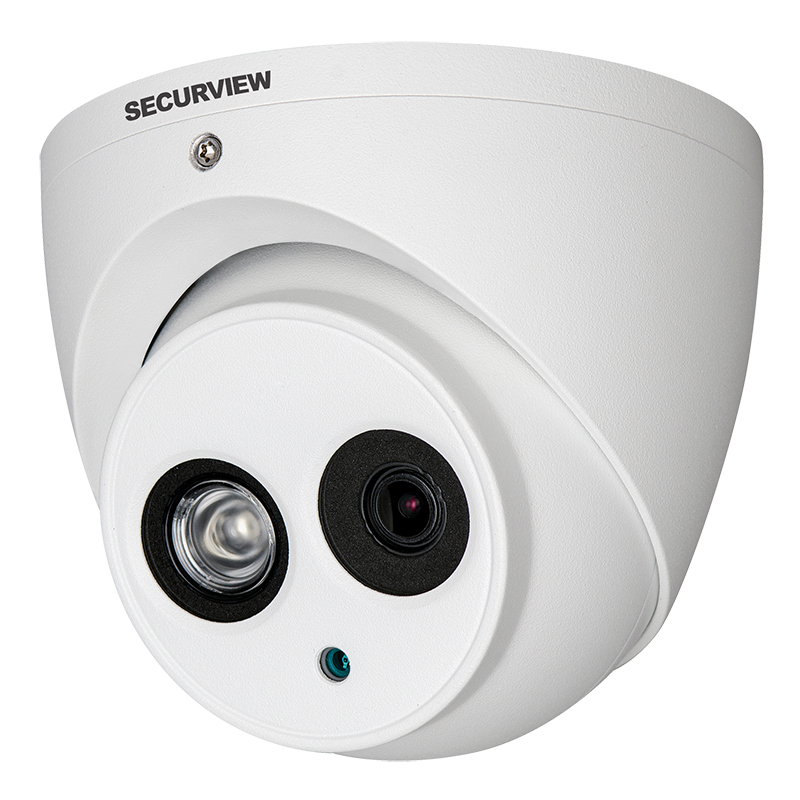

Professional Series 4.0MP Fixed HDCVI Mini Dome
Model:VSCVI4MPDIR
Overview
Making analogue upgrade installations easy. Enjoy up to 9 times the resolution of D1 analogue cameras by upgrading with the Securview 4.0MP fixed-lens range.
Camera features:
• Streams 4.0MP (2560 x 1440)
• Fixed 3.6mm lens; 79° viewing angle
• Up to 700m video transmission over coax
• Infrared illumination up to 50m
• IP67 rated for weather resistance
• Dual BNC outputs for composite and HDCVI video
• True WDR (120dB) and 2D/3D noise reduction
• Compact size with tri-axis mounting
• All metal construction
Backwards compatible: Dual BNC video output for HDCVI or Analogue.
Analogue mode configuration via OSD using HDCVI DVR or tester.
Camera features:
• Streams 4.0MP (2560 x 1440)
• Fixed 3.6mm lens; 79° viewing angle
• Up to 700m video transmission over coax
• Infrared illumination up to 50m
• IP67 rated for weather resistance
• Dual BNC outputs for composite and HDCVI video
• True WDR (120dB) and 2D/3D noise reduction
• Compact size with tri-axis mounting
• All metal construction
Backwards compatible: Dual BNC video output for HDCVI or Analogue.
Analogue mode configuration via OSD using HDCVI DVR or tester.
| Specifications | |
|---|---|
| Alarm Interface | N/A |
| Analogue Support | Yes (Dual output) |
| Angle of View | 79° |
| Audio Input | N/A |
| Camera Type | Dome |
| Day/Night | Auto (ICR) / Manual |
| Detect (25px/m) | 80m |

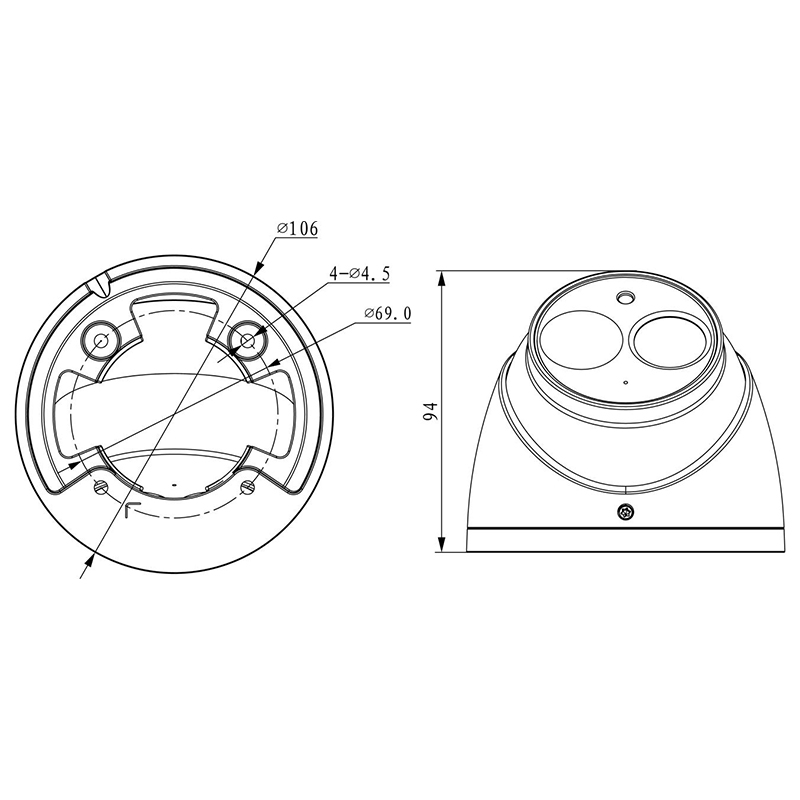

| Dimensions | Ø106 x 94mm |
| Effective Pixels | 2688 (H) x 1520 (V) |
| Electronic Shutter | 1/4 ~ 1/100,000s |
| Focus | Fixed / 1.5m Min. Focus Distance |
| Frame Rate | 25fps (4.0MP), 25fps (1080p and lower) |
| Gain Control | Auto |
| Housing | Metal |
| Identify (250px/m) | 8m |
| Image Sensor | 1/3” 4.1 Megapixel CMOS |
| Infrared Range | 50m |
| Ingress Protection | IP67 |
| Lens | 3.6mm F1.5 Fixed Lens |
| Lens Type | Fixed |
| Lighting Compensation | BLC / HLC / WDR (120dB) |
| Max. Resolution | 4.0 Megapixel |
| Minimum Illumination | 0.01 Lux at F1.5 (Colour) / 0 Lux IR Active |
| Noise Reduction | 2D / 3D |
| Observe (63px/m) | 32m |
| Operating Environment | -30° to 60°C / RH90% (max) |
| OSD Menu | Support |
| Power Consumption | < 5.3W |
| Power Input | 12VDC |
| Recognise (125px/m) | 16m |
| Resolution | 4.0MP (2560 x 1440) to CIF (352 x 288) |
| Series | Professional Series |
| Signal Noise Ratio | > 65dB |
| Synchronisation | Internal |
| Transmission Distance | Rated for up to 700m via 75-3 coaxial cable (performed in ideal test conditions) |
| Tri-Axis Mounting | Yes |
| Vandal Resistant | N/A |
| Video Output | 2 x BNC video output (1 x HDCVI / 1 x Composite SD) |
| Weight | 0.44kg |
| White Balance | Auto / Manual |
| Warranty (Years) | 4 |
