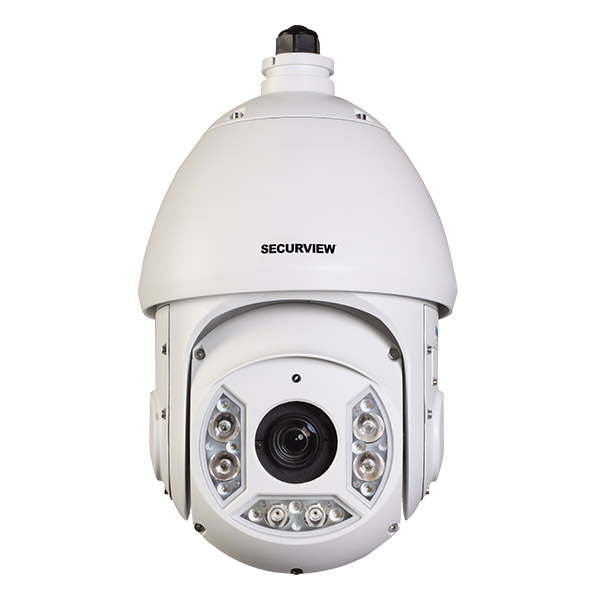

Ultimate Series 4.0MP 30x Zoom HDCVI PTZ
Model:VSCVI4MPPTZIR
Overview
The VSCVI4MPPTZIR delivers the very best in HDCVI PTZ recording, always bringing clear evidence with 4.0MP resolution at 25fps and an incredible 30x lossless optical zoom.
Camera features:
• Stream up to 4.0MP (2592 x 1520) at 25fps
• Motorised varifocal 4.5 ~ 135mm lens, auto iris
• Up to 30x lossless optical zoom lens
• Up to 700m video transmission over coaxial cable
• Smart infrared illumination, up to 100m range
• Endless 360° pan, 105° tilt-range and auto-flip 180°
• 2/1 alarm input/output and 1 channel audio input
• True WDR (120dB) and 2D/3D noise reduction
• Supports HDCVI & Composite video format modes
• Switch modes via the PTZ internal DIP switches
Camera features:
• Stream up to 4.0MP (2592 x 1520) at 25fps
• Motorised varifocal 4.5 ~ 135mm lens, auto iris
• Up to 30x lossless optical zoom lens
• Up to 700m video transmission over coaxial cable
• Smart infrared illumination, up to 100m range
• Endless 360° pan, 105° tilt-range and auto-flip 180°
• 2/1 alarm input/output and 1 channel audio input
• True WDR (120dB) and 2D/3D noise reduction
• Supports HDCVI & Composite video format modes
• Switch modes via the PTZ internal DIP switches
| Specifications | |
|---|---|
| Alarm Interface | 2 channel in / 1 channel out |
| Angle of View | 60° (wide) ~ 2.2° (tele) (30x Optical Zoom) |
| Audio Input | 1 channel in |
| Camera Type | PTZ Dome |
| Day/Night | Auto (ICR) / Colour / B&W |
| Detect (25px/m) | 2700m |
| Dimensions | Ø205 x 360mm |
| Effective Pixels | 2592 (H) x 1520 (V) |
| Electronic Shutter | 1/3 ~ 1/300,000s 1/1 ~ 1/30,000s |
| Focus | Auto/Manual / 1m Min. Focus Distance |
| Frame Rate | 25fps (4.0MP and lower) |
| Gain Control | Auto / Manual |
| Housing | Metal |
| Identify (250px/m) | 270m |
| Image Sensor | 1/3" 4.0 Megapixel CMOS |
| Infrared Range | 100m |
| Ingress Protection | IP66 |
| Lens | 4.5 ~ 135mm F1.6 ~ F4.4 Motorised Lens; Auto Iris |
| Lens Type | Motorised Varifocal |
| Lighting Compensation | BLC / HLC / WDR (120dB) |
| Manual PTZ Speed | Pan: 0.1° ~ 160°/s; Tilt: 0.1° ~ 120°/s |
| Max. Resolution | 4.0 Megapixel |
| Minimum Illumination | 0.005 Lux at F1.6 (Colour) / 0 Lux at F1.6 (IR on) 0.05 Lux at F1.6 (Colour) / 0 Lux at F1.6 (IR on) |
| Mode Switching | DIP Switches |
| Modes Supported | HDCVI & Composite |
| Noise Reduction | Ultra DNR (2D / 3D) |
| Observe (63px/m) | 1080m |
| Operating Environment | -40° to 60°C / RH90% (max) |
| OSD Menu | Support |
| Pan/Tilt Range | Pan: 0° ~ 360° endless / Tilt: -15° ~ 90° / Auto-flip 180° |
| Power Consumption | < 13W / 23W (IR active) |
| Power Input | 24VAC 3A ±10% |
| Preset PTZ Speed | Pan: 240°/s; Tilt: 200°/s |
| Presets | 300 |
| Protocols | DH-SD / Pelco-P/D (Auto Recognition) |
| PTZ Modes | 5 Pattern / 8 Tour / Auto Pan / Auto Scan |
| Recognise (125px/m) | 540m |
| Resolution | 4.0MP (2592 x 1520) / 1080p (1920 x 1080) / 720p (1280 x 720) |
| RS485 | 1 Input |
| Series | Ultimate Series |
| Signal Noise Ratio | > 55dB |
| Synchronisation | Internal |
| Transmission Distance | Rated for up to 700m via 75-3 coaxial cable (performed in ideal test conditions) |
| Tri-Axis Mounting | Yes |
| Vandal Resistant | No |
| Video Output | BNC CVI HD output / Composite SD output (switchable) |
| Weight | 7.8kg |
| White Balance | Auto, ATW, Indoor, Outdoor, Manual |
| Warranty (Years) | 4 |
