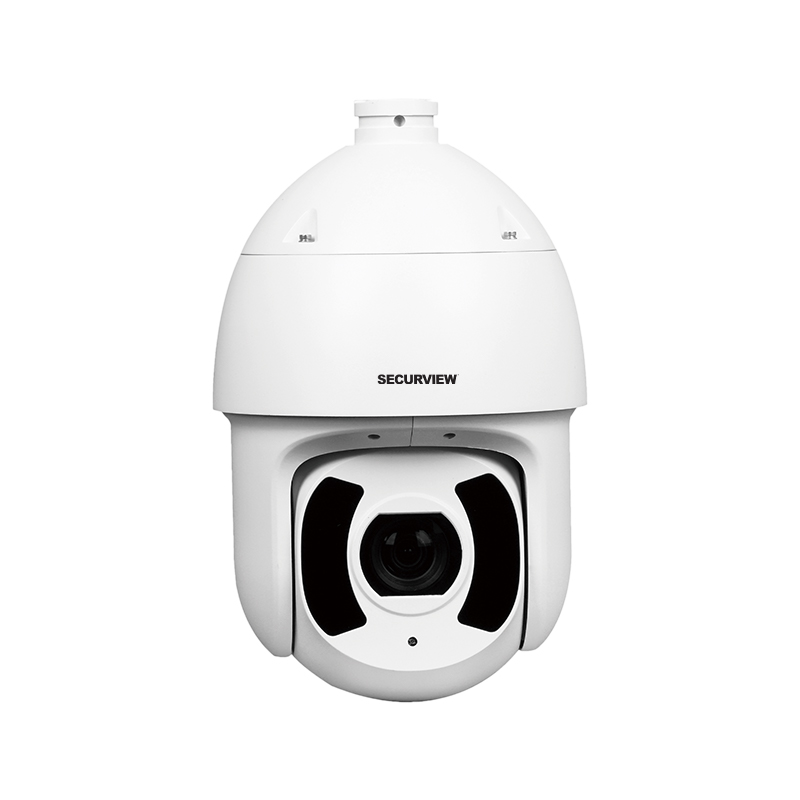

Ultimate Series 1080p 25x Zoom HDCVI PTZ
Model: VSCVIPTZ-2IRU

Overview

Every moment captured with the Securview HDCVI PTZ series. The VSCVIPTZ-2IRU features superior colour rendering in low light conditions, with an incredible 25x zoom distance and low light colour performance.

Camera features:
• Stream up to 1080p (1920 x 1080) at 25fps
• Motorised 4.8 ~ 120mm lens with auto iris
• 62.8° ~ 2.6° horizontal viewing angles
• Smart infrared illumination, up to 200m
• Superb low light colour performance at 0.005lx
• Endless 360° pan, 20°~90° tilt-range and auto-flip 180°
• 2/1 alarm input/output and 1 channel audio input
• True WDR (120dB) and 2D/3D noise reduction
• IK10 vandal resistant metal housing
• Supports HDCVI & Composite video format modes
• Switch modes via the PTZ internal DIP switches

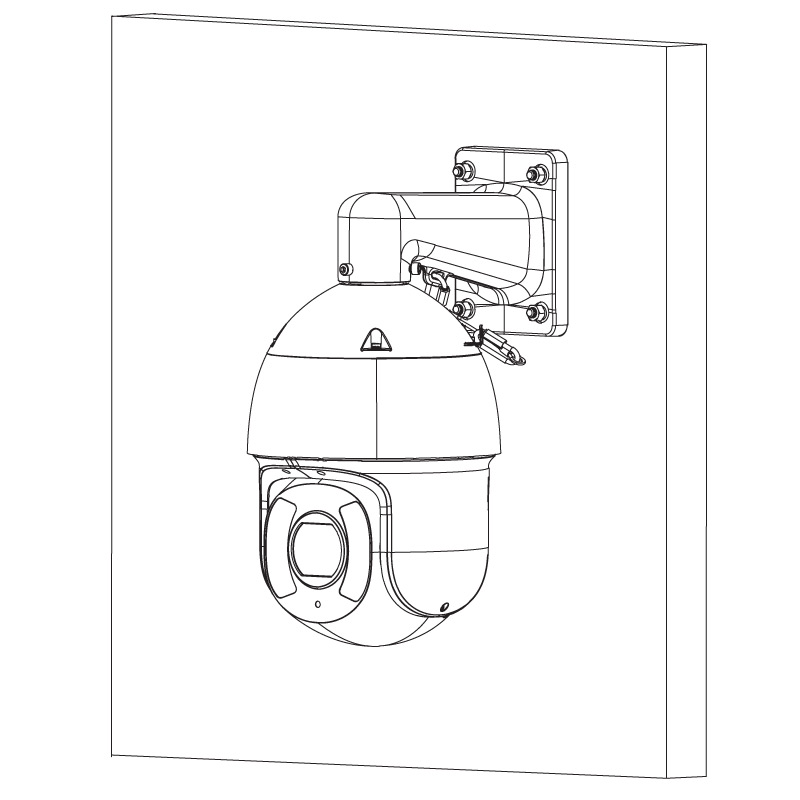

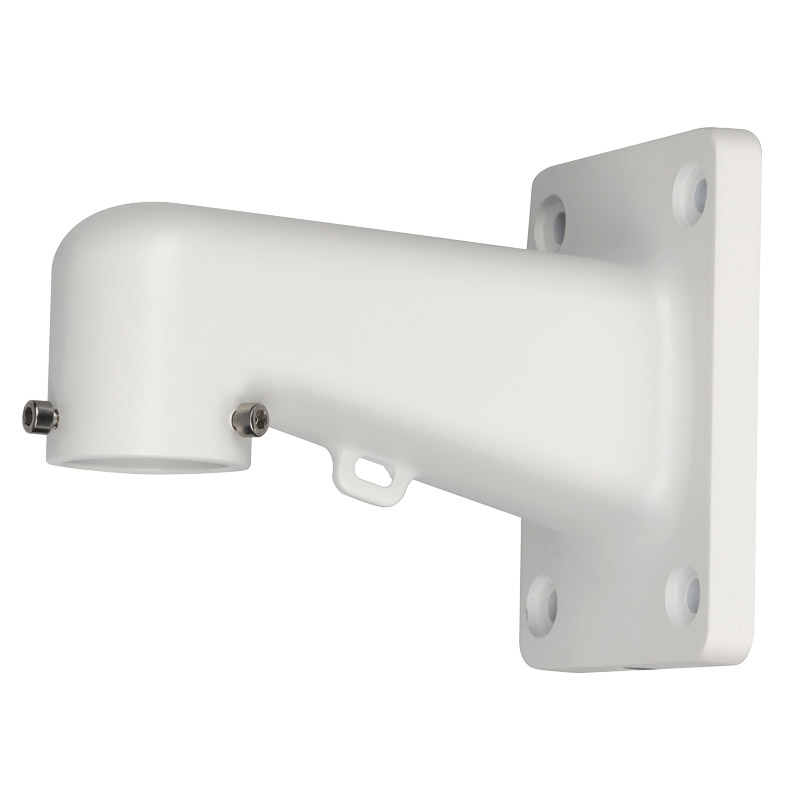

This PTZ dome camera comes standard with right angle bracket and AC power supply.
Specifications
Alarm Interface 1 channel in/ 1 channel out
Angle of View 62.8° (wide) ~ 2.6° (tele) (25x Optical Zoom)
Audio Input 1 channel in
Camera Type PTZ Dome
Day/Night Auto (ICR) / Colour / B&W
Detect (25px/m) 1613m

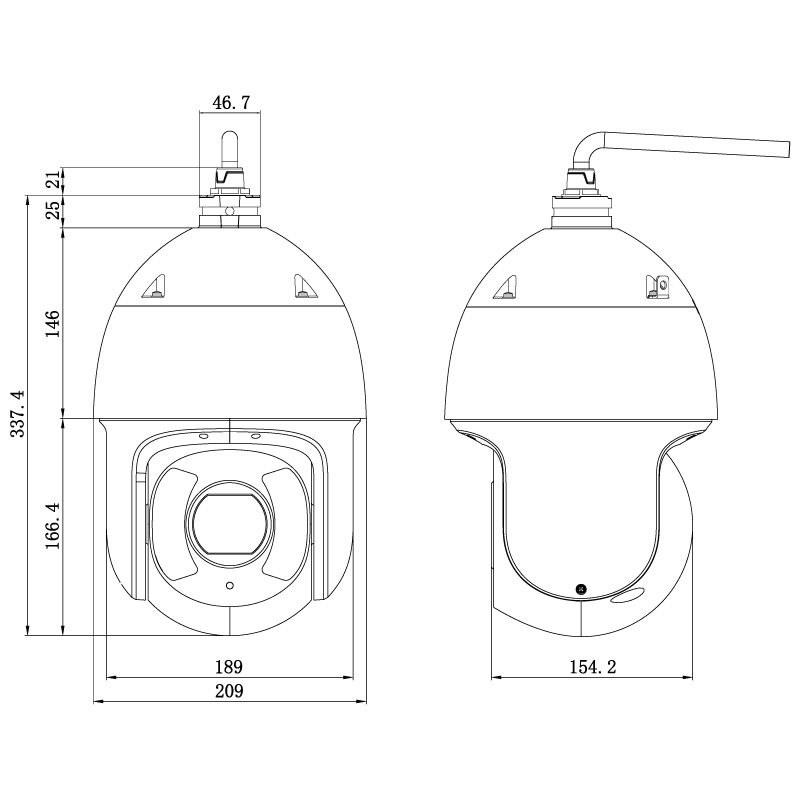

Dimensions Ø209 x 337mm
Effective Pixels 1920 (H) x 1080 (V)
Electronic Shutter 1/1 ~ 1/30,000s
Focus Auto/Manual / 0.1m Min. Focus Distance
Frame Rate 25fps (4.0MP/1080p) / 60fps (720p and lower)
Gain Control Auto/ Manual
Housing Metal
Identify (250px/m) 161m
Image Sensor 1/2.8” 2.0 Megapixel CMOS
Infrared Range 200m
Ingress Protection IP67
Lens 4.8 ~ 120mm F1.6 ~ F4.4 Motorised Lens; Auto Iris
Lens Type Motorised Varifocal
Lighting Compensation BLC / HLC / WDR (120dB)
Manual PTZ Speed Pan: 0.1° ~ 200°/s; Tilt: 0.1° ~ 120°/s
Max. Resolution 2.0 Megapixel
Minimum Illumination 0.005 Lux at F1.6 (Colour, B&W) / 0 Lux at F1.6 (IR on)
Mode Switching DIP Switches
Modes Supported HDCVI & Composite
Noise Reduction Ultra DNR (2D / 3D)
Observe (63px/m) 646m
Operating Environment -40° to 70°C / RH95% (max)
OSD Menu Support
Pan/Tilt Range Pan: 0° ~ 360° endless / Tilt: -20° ~ 90° / Auto-flip 180°
Power Consumption 17W / 25W (IR & Heater Active)
Power Input 24VAC 3A ±25%
Preset PTZ Speed Pan: 300°/s; Tilt: 200°/s
Presets 300
Protocols DH-SD / Pelco-P/D (Auto Recognition)
PTZ Modes 5 Pattern / 8 Tour / Auto Pan / Auto Scan
Recognise (125px/m) 323m
Resolution 4.0MP (2592 x 1520) / 1080p (1920 x 1080) / 720p (1280 x 720)
RS485 1 Input
Series Ultimate Series
Signal Noise Ratio > 55dB
Synchronisation Internal
Transmission Distance Rated for up to 700m via 75-3 coaxial cable (performed in ideal test conditions)
Tri-Axis Mounting Yes
Vandal Resistant IK10
Video Output BNC CVI HD output / Composite SD output (switchable)
Weight 9.6kg
White Balance Auto, ATW, Indoor, Outdoor, Manual
Warranty (Years) 4
